Cox (semiparametric proportional hazard)

This demonstration requires 2 optional dependencies : pandas and lifelines. Install them if you wish to reproduce examples outputs. Otherwise, below examples may help you to understand how you can use Cox model with ReLife.

Loading data

Let’s use a lifelines dataset.

import lifelines
import pandas as pd

df = lifelines.datasets.load_canadian_senators()

Clean up the dataset

df = df[["Name", "Province / Territory", "reason", "diff_days", "observed"]]
df = df[df["reason"] != "Appointment declined"]
# standardize text (removing white spaces, non alphanumeric characters and put in lower case)
df["Province / Territory"] = (
    df["Province / Territory"].str.replace("\W+", "", regex=True).str.lower()
)
display(df.head())

	Name	Province / Territory	reason	diff_days	observed
0	Abbott, John Joseph Caldwell	quebec	Death	2363	True
1	Adams, Michael	newbrunswick	Death	1090	True
2	Adams, Willie	northwestterritories	Retirement	11766	True
3	Aikins, James Cox	ontario	Resignation	5333	True
4	Aikins, James Cox	ontario	Death	3133	True

df["Province / Territory"].value_counts()

Province / Territory
quebec                      246
ontario                     242
novascotia                   98
newbrunswick                 93
britishcolumbia              44
manitoba                     44
alberta                      43
princeedwardisland           39
saskatchewan                 32
newfoundlandandlabrador      30
northwestterritories          7
yukon                         3
westernprovincesdivision      2
maritimesdivision             2
quebecdivision                2
ontariodivision               2
nunavut                       1
Name: count, dtype: int64

Dummy encoding of “Province / Territory” covariates

# dummy encoding of "Province / Territory"
df = pd.get_dummies(df, columns=["Province / Territory"], prefix="covar", dtype=int)
# remove covariate columns corresponding to low count province
covar_cols = [col for col in df.columns if "covar" in col]
province_count = df[covar_cols].sum()
province_with_low_count = province_count[province_count < 10]
df = df.drop(columns=province_with_low_count.index)

print(df.columns)

Index(['Name', 'reason', 'diff_days', 'observed', 'covar_alberta',
       'covar_britishcolumbia', 'covar_manitoba', 'covar_newbrunswick',
       'covar_newfoundlandandlabrador', 'covar_novascotia', 'covar_ontario',
       'covar_princeedwardisland', 'covar_quebec', 'covar_saskatchewan'],
      dtype='object')

Fitting

Lifelines version

from lifelines.fitters.coxph_fitter import CoxPHFitter
# Lifelines model fit

covar_cols = [col for col in df.columns if "covar" in col]
ll_model = CoxPHFitter()
ll_model.fit(
    df=df,
    duration_col="diff_days",
    event_col="observed",
    formula="~ " + " + ".join(covar_cols),
)
print(ll_model.params_)

covariate
covar_alberta                    0.345928
covar_britishcolumbia            0.173319
covar_manitoba                   0.292570
covar_newbrunswick               0.193955
covar_newfoundlandandlabrador    0.444993
covar_novascotia                 0.266590
covar_ontario                    0.319706
covar_princeedwardisland         0.397880
covar_quebec                     0.344936
covar_saskatchewan              -0.049557
Name: coef, dtype: float64

# Lifelines sf
max_offset = 0

X = df.filter(regex="covar").iloc[:2]

sf_lifelines = ll_model.predict_survival_function(
    X=X,
    times=range(
        df["diff_days"].min().astype(int),
        df["diff_days"].max().astype(int) + max_offset,
    ),
)

sf_lifelines.columns = X.index

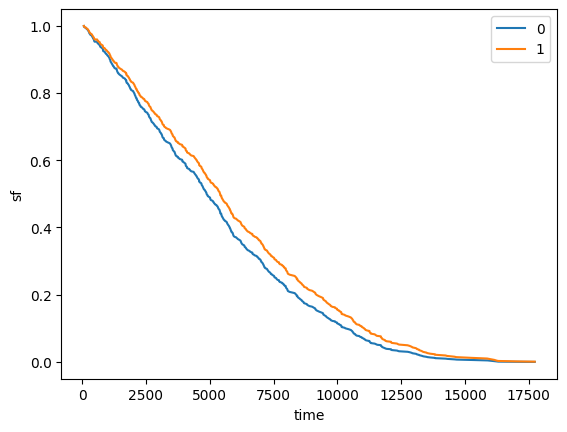

sf_lifelines.plot(xlabel="time", ylabel="sf")

<Axes: xlabel='time', ylabel='sf'>

ReLife version

from relife.lifetime_models import SemiParametricProportionalHazard

cox_model = SemiParametricProportionalHazard()
cox_model.fit(
    df["diff_days"].to_numpy(),
    covar=df.filter(regex="covar").to_numpy(),
    event=df["observed"].to_numpy(dtype=bool),
)

<relife.lifetime_models._semi_parametric_regressions.SemiParametricProportionalHazard at 0x7cf61d876750>

timeline, sf_values = cox_model.sf(covar=X, se=False)

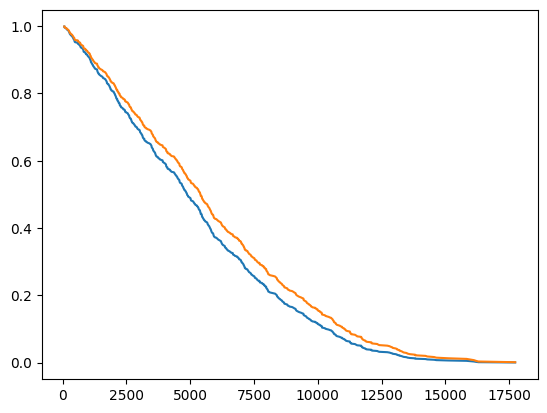

import matplotlib.pyplot as plt

plt.plot(timeline, sf_values[0])
plt.plot(timeline, sf_values[1])

[<matplotlib.lines.Line2D at 0x7cf61d44a590>]
